Sanghvi products

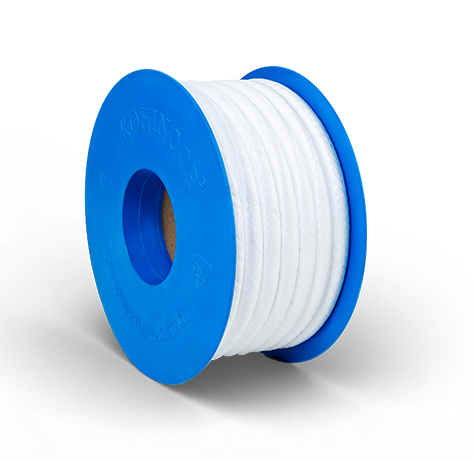

FDA Valve Seal[Kohinoor Style 14 FDA]

Construction: Valve Seal is provided with double construction of 100% PTFE core with spiral wrapping of PTFE tape.
Application: The core fills all voids and confirms to uneven spindles and flanges while the spiral wrapping of PTFE tape prevents extrusion at both ends of the spindle. It is widely recommended for use on valves in various industries for obtaining practically Zero Leakage. Can also be used in place of gasket in flanged joint.

Installation: View Detail, Click Here..
Complies With: US FDA 21 CFR 177.1550
Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-100 to 260
0-14
200
---

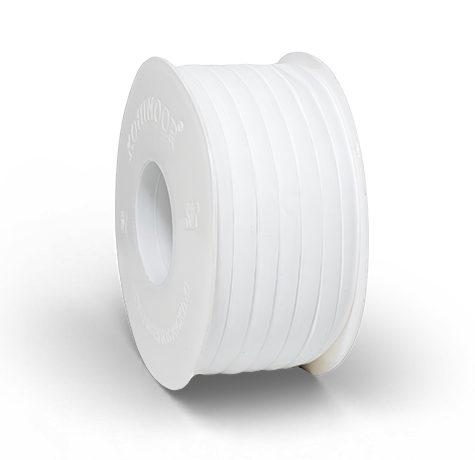

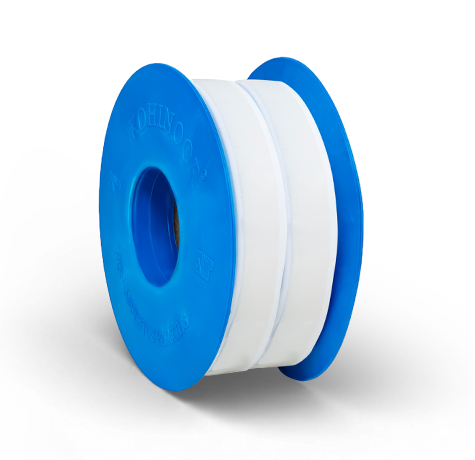

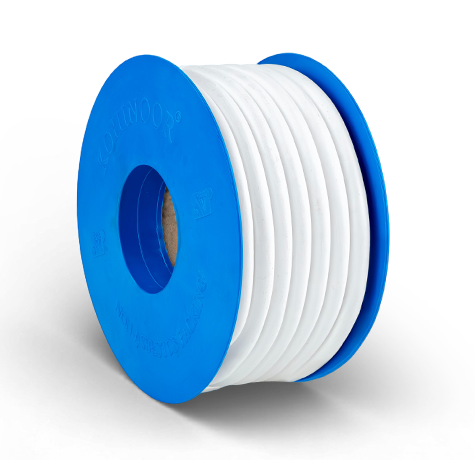

FDA Expanded PTFE[Kohinoor Style 21 FDA]

Construction: Expanded Soft packing made from a special grade PTFE resin with one side adhesive strip.
Application: Expanded soft packing fills all voids in uneven or damaged surfaces thereby giving perfect sealing. Recommended for sealing flanges, housings of pumps, reactors, compressors & gearboxes, manholes, heat exchangers, agitators, mixers, tank leads and many other such applications.

Complies with: US FDA 21 CFR 177.1550 (PTFE)
US FDA 21 CFR 175.105 (Adhesive Backing Tape)
Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-240 to 260
0-14
200
---

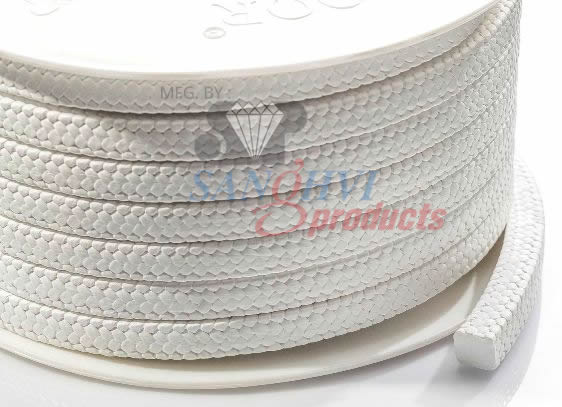

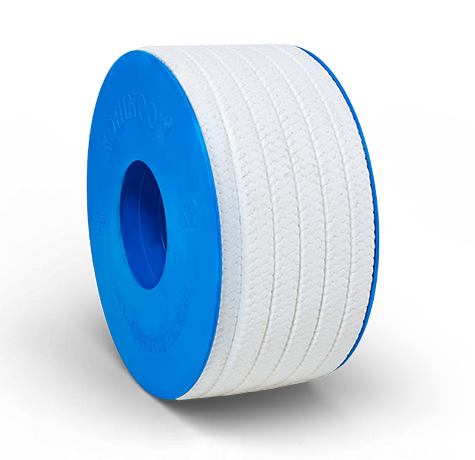

FDA PTFE Packing[Kohinoor Style 52 FDA]

Construction: High tensile yarn made of special grade PTFE and impregnated with PTFE dispersion.
Application: This packing is mainly recommended where lubricant is not to be used due to danger of combustion. It is also used in pumps having low shaft speed and equipments in handling hazardous & corrosive chemicals.

Installation: View Detail, Click Here..
Complies with: - US FDA 21 CFR 177.1550
- Article 3 of European Regulation No. 1935/2004.
Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-200 to 260
0-14
100
5
