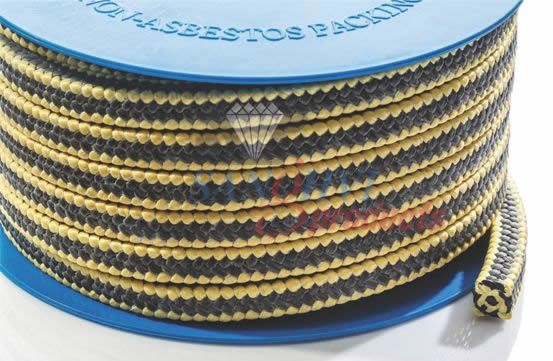

PTFE Graphite & Aramid Comb. Pack[Kohinoor Style 83]

Construction: A high quality combination packing of Graphite bonded PTFE yarn with aramid corners.
Application: This packing has good sliding properties and thermal conductivity, making it an excellent packing option for high pressure pumps with sliding velocity. Aramid yarn corners prevent gap extrusion in high pressure & high temperature applications. It is widely used in applications involving abrasive media.
Installation: View Detail, Click Here..
Available Size: From 3mm to 45mm .

Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-240 to 260
0-12
200
20

Standard
Packing:
3mm to 5mm
6mm to 14mm
16mm to 19mm
Above 19mm
1/2 kg
1kg
2kg2
5kg
