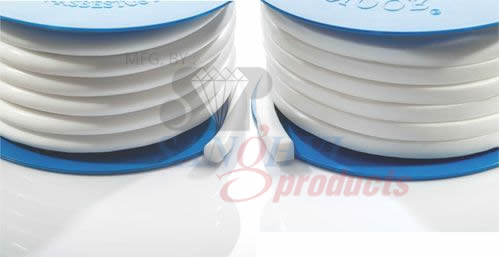

PTFE Universal Soft Packing[Kohinoor Style 11 & 12]

Construction: Extruded soft packing made from PTFE and high temperature lubricant. Available in square and round sections.
Application: Suitable for pumps, valves and many other static applications. Due to the chemical inertness of PTFE, it can be used with all substances. Offers excellent sealing when used in place of gasket or jointing in flanges in almost all type of industries.

Installation: View Detail, Click Here..
Standard Packing: 3 mm - 30 mts.
4 mm - 20 mtrs.
5 mm to 8 mm - 10 mtrs.
10 mm to 19 mm - 5 mtrs.
Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-100 to 260
0-14
20
4

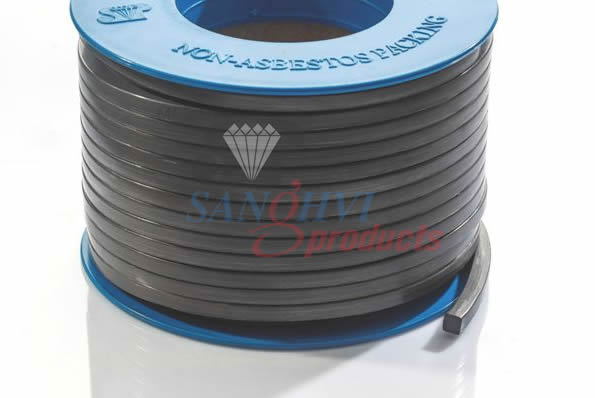

PTFE Graphite Soft Packing[Kohinoor Style 13]

Construction: An extremely low friction extruded soft and dense packing made from a special grade of PTFE, graphite and high temperature lubricant.
Application: This self-lubricating packing has excellent thermal and chemical resistance. It reduces friction to shafts and resists gas permeation. It is used in pumps, valves, stirring equipment and static applications for use with acids, dyes, solvents, adhesives and abrasive media. It is recommended to use rings of Style 61 or Style 71 on both ends.


Installation: View Detail, Click Here..
Standard Packing: 6 mm to 14 mm - 1 Kg
16 mm to 19 mm - 2 Kg
Above 19 mm - 5 Kg
Service
Parameters:
Temp.
pH
Pressure
Velocity
° C
Range
Kg/cm2
Mtrs/sec
-100 to 260
0-14
20
4
